Description

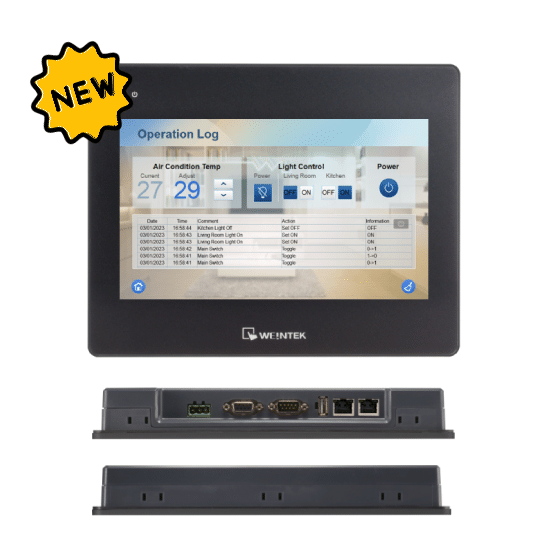

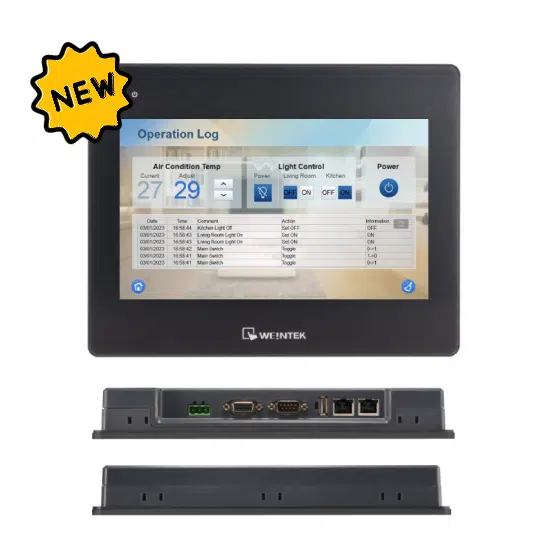

Weintek cMT2102X HMI Touch Panel
The Weintek cMT2102X is a high-performance 10.1-inch Human Machine Interface (HMI) designed for modern industrial automation applications. Featuring a widescreen display, powerful processing capability, and advanced communication options, it enables operators to monitor and control industrial equipment efficiently.
This industrial HMI provides a user-friendly touchscreen interface that simplifies machine operation, improves productivity, and enhances real-time system monitoring. The cMT2102X supports communication with a wide range of PLCs and industrial devices, making it a reliable solution for manufacturing plants, packaging machines, textile industries, food processing facilities, and automation projects.
Key Features
- 10.1-inch widescreen TFT LCD display
- Responsive touchscreen operation
- High-performance processor
- Supports multiple PLC communication protocols
- Ethernet communication support
- Remote monitoring capabilities
- User-friendly EasyBuilder Pro software
- Reliable industrial-grade construction
Applications
The Weintek cMT2102X is widely used in:
- Textile manufacturing
- Packaging and labeling machines
- Food and beverage processing
- Industrial automation systems
- Production lines
- Machine control panels
- Factory monitoring systems
Benefits
The cMT2102X helps operators visualize production data, monitor machine status, and improve operational efficiency. Its advanced connectivity allows seamless integration with PLCs, SCADA systems, and industrial networks, reducing downtime and improving process control.
Why Choose Newtech?
Newtech offers genuine Weintek HMI products with technical support, competitive pricing, and nationwide delivery across Pakistan. Our automation experts can help you select the right HMI solution for your industrial application.
Contact us today to get the latest price and availability of the Weintek cMT2102X HMI Touch Panel.
HMI with 10.1″ WVA Display
- 10.1″ 1024 × 600 Wide Viewing Angle LCD
- Resistive touch panel
- COM port × 3, Ethernet port × 2, USB host port × 1
- Built- in 4GB Flash and 1GB RAM
- COM2 / COM3 RS-485 2W supports MPI 187.5K, please use one at a time
- Fan-less Cooling System
- Compatible with M02 WiFi Expansion Module that supports wireless communication
-
Product Specifications
| Display | |
|---|---|
| Display | 10.1″ WVA |
| Resolution | 1024 x 600 |
| Brightness (cd/m2) | 400 |
| Contrast Ratio | 500:1 |
| Backlight Life Time | >30,000 hrs. |
| Colors | 16.7M |
| LCD View Angle (T/B/L/R) | 85/85/85/85 |
| Pixel Pitch (mm) | 0.2175 (H) x 0.2088 (V) |
| Touch Panel | |
| Type | 4-wire Resistive Type |
| Accuracy | Active Area Length(X)±2%, Width(Y)±2% |
| Memory | |
| Flash | 4 GB |
| RAM | 1 GB |
| Processor | |
| CPU | Quad-core RISC |
| I/O Port | |
| Memory Card Type | N/A |
| USB Host | USB 2.0 x 1 |
| Ethernet Port | 10/100 Base-T x 2 |
| COM Port | Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W Con.B: COM1 RS-232 4W, COM3 RS-232 2W*(1) |
| WiFi | |
| RS-485 Dual Isolation | N/A |
| CAN Bus | N/A |
| Audio Output | N/A |
| Power | |
| Input Power | 24±20% VDC |
| Power Isolation | Built-in |
| Power Consumption | 420mA@24VDC |
| Voltage Resistance | 500VAC (1 min.) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| Mechanical | |
| Enclosure | Plastic |
| Dimensions WxHxD | 271 x 213 x 38 mm |
| Panel Cutout | 260 x 202 mm |
| Weight | Approx. 1.2 kg |
| Mount | Panel mount, VESA mount 75 x 75 mm |
| Environment | |
| PCB Coating | Yes |
| Protection Structure | NEMA4 / IP66 Compliant Front Panel |
| Storage Temperature | -20° ~ 60°C (-4° ~ 140°F) |
| Operating Temperature | 0° ~ 55°C (32° ~ 131°F) |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Altitude | 3,000 m |
| Vibration Endurance | 10 to 25Hz (X, Y, Z direction 2G 30 minutes) |
| Certificate | |
| CE | CE marked |
| Software | |
| Weincloud | EasyAccess 2.0 (Optional) Dashboard (Optional) |
| CODESYS | Optional |
(1) Only Tx & Rx (no RTS/CTS) may be used for COM1 RS-232 when COM3 RS-232 is also used.
Document
| Category | File Name | Version | Release Date | Download |
| Data Sheet | cMT2102X-Datasheet-eng.pdf | English | 2026/03/04 |  |
| Installation Instruction | cMT2102X-Installation-Instruction-eng.pdf | English | 2026/02/06 | |
